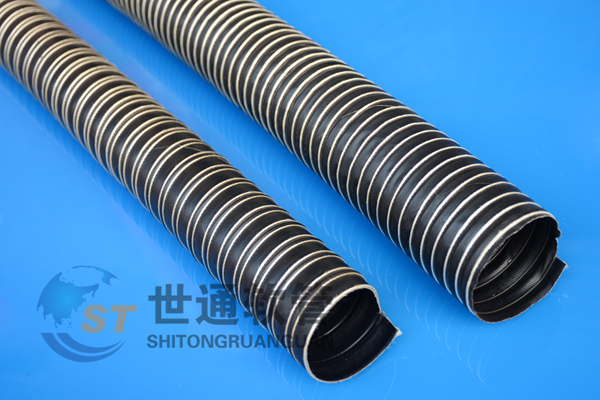

Material: spiral ring: high elastic steel wire, high temperature resistant glass fiber pipe wall: double layer neoprene coated glass fiber cloth.
Application:
Used for cold and hot air circulation system, such as plastic industry, dry hot air: particle / plastic dryer, hot air dryer, film blowing machine, extruding tool to cool air,
Printing machinery, hot air blower and compressor, and exhaust emissions, car engine heating, train hot air circulation system, aviation equipment and military equipment, air supply: UV dryer, infrared dryer passenger car, off-road car, caravan / trailer, RV / camper / leisure car, small boat, ship / ship, yacht: ventilation, heating
Refuse incineration plants are transported by high temperature air or gas medium.
Characteristic:
It has smooth inner wall, small wind resistance, light weight, strong elasticity and flexibility.
Anti UV, oil resistant, corrosion resistant, durable and durable.
Imported chloroprene rubber material is environmentally friendly, non-toxic and flame retardant.
Double layer, fiber reinforced lightweight, minimal bending radius good chemical resistance.
Good heat resistance, smooth inner wall, easy to bend, no easy to kink, bending, no indentation after restoration.
Temperature range: -35 C to 135 C, short time to 150 C.
Technical parameters:
|
內(nèi)徑（mm)
|
外徑
|
工作壓力
|
彎曲半徑（mm）
|
凈重（kg/m)
|
紙箱尺寸（cm)
|
長度(m/條）
|
訂購號碼
|
|
（mm)
|
正壓
|
負壓
|
|
|
（bar)
|
（bar)
|
|
19
|
22
|
3
|
0.73
|
22
|
0.11
|
10*10*100
|
4
|
ST00385a-019-0000
|
|
22
|
25
|
3
|
0.72
|
25
|
0.17
|
10*10*100
|
4
|
ST00385a-022-0000
|
|
25
|
29
|
2.8
|
0.71
|
30
|
0.19
|
10*10*100
|
4
|
ST00385a-025-0000
|
|
32
|
36
|
2.7
|
0.65
|
36
|
0.28
|
12*12*100
|
4
|
ST00385a-032-0000
|
|
38
|
43
|
2.6
|
0.6
|
43
|
0.31
|
12*12*100
|
4
|
ST00385a-038-0000
|
|
44
|
49
|
2.6
|
0.58
|
49
|
0.32
|
15*15*100
|
4
|
ST00385a-044-0000
|
|
51
|
56
|
2.6
|
0.52
|
56
|
0.36
|
15*15*100
|
4
|
ST00385a-051-0000
|
|
63
|
68
|
2.4
|
0.46
|
68
|
0.49
|
17*17*100
|
4
|
ST00385a-063-0000
|
|
76
|
81
|
2.1
|
0.43
|
81
|
0.58
|
21*21*100
|
4
|
ST00385a-076-0000
|
|
83
|
88
|
2.1
|
0.41
|
88
|
0.63
|
21*21*100
|
4
|
ST00385a-083-0000
|
|
89
|
94
|
2
|
0.4
|
94
|
0.69
|
21*21*100
|
4
|
ST00385a-089-0000
|
|
102
|
107
|
1.9
|
0.35
|
107
|
0.77
|
26*26*100
|
4
|
ST00385a-102-0000
|
|
115
|
120
|
1.5
|
0.3
|
120
|
0.85
|
28*28*100
|
4
|
ST00385a-115-0000
|
|
121
|
127
|
1.5
|
0.24
|
127
|
0.89
|
31*31*100
|
4
|
ST00385a-121-0000
|
|
127
|
133
|
1.4
|
0.23
|
133
|
0.93
|
31*31*100
|
4
|
ST00385a-127-0000
|
|
140
|
146
|
1.3
|
0.2
|
146
|
1
|
33*33*100
|
4
|
ST00385a-140-0000
|
|
152
|
158
|
1.2
|
0.17
|
158
|
1.2
|
33*33*100
|
4
|
ST00385a-152-0000
|
|
178
|
184
|
1
|
0.12
|
184
|
1.43
|
39*39*100
|
4
|
ST00385a-178-0000
|
|
203
|
209
|
0.7
|
0.09
|
209
|
1.65
|
45*45*100
|
4
|
ST00385a-203-0000
|
|
254
|
260
|
0.5
|
0.07
|
260
|
2.09
|
55*27*190
|
4
|
ST00385a-254-0000
|
|
